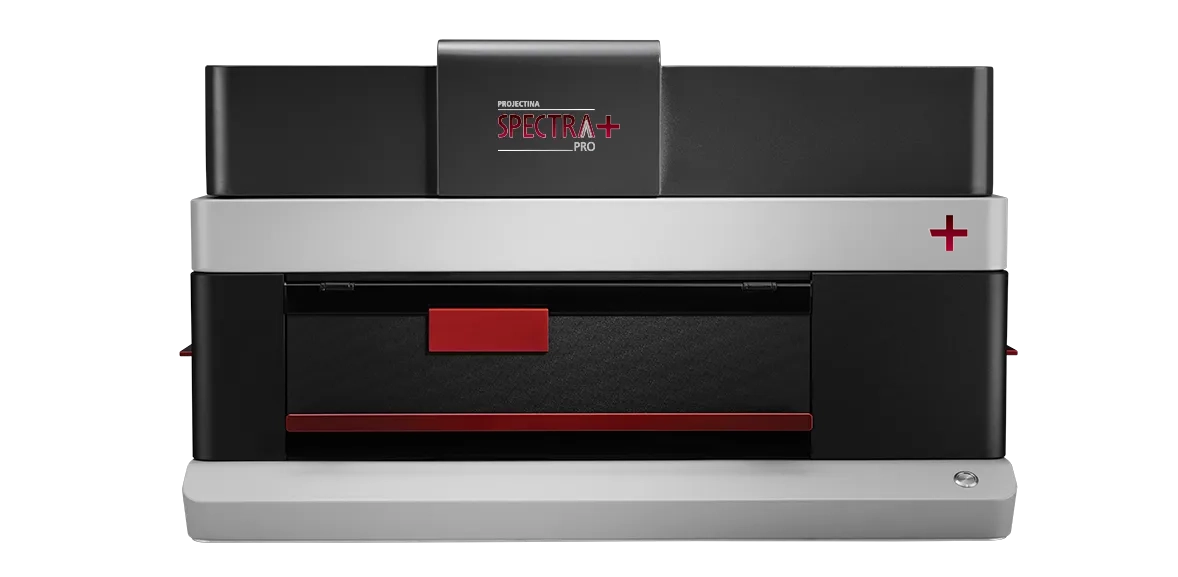

PROJECTINA SPECTRA PRO+

$0.00

Quantity

Add to Cart In Stock

Projectina Spectra Pro+ has set a new standard for spectral analysis for forensic labs, security printers and immigration authorities.

The Spectra Pro+ is quite simply best in class, built around state-of-the-art spectral analysis. It is the ultimate Video Spectral Comparator, a powerhouse trusted by authorities around the world for the inspection, authentication, and quality assurance of passports, ID cards, security and legal documents, breeder documents, banknotes and cheques.

Unprecedented image quality with best-in-class optical technology
State-of-the-art digital camera with extreme sensitivity in wavelengths between 350 and 1100 nm

Effortless inspection of microtext and fibers with class-leading optical magnification of up to 500x on a 32” 4K monitor
Largest available field of view for easy viewing of multiple regions of interest and identification of trends and inconsistencies

Superior user experience with the latest software and USB 3.1 interface
Extensive list of accessories and options to facilitate highly specialized examinations

Stunning optical magnification performance - up to 500x on a 32" 4K monitor

Automation capabilities for more efficient workflows and increased productivity

Optical Performance

High resolution imaging across the full spectral range, ensuring infrared images are crisper, regions of interest easier to examine and the minutest evidence likelier to be detected.

Unrivalled Details

Optical magnification of up to 500x with a 24.5 MP camera radically enhances the ability to inspect micro text, fibers and microscopic security features.

User Orientation

Ergonomic, feature-packed design allows users to see more in less time, improving both accuracy and productivity as well as operator comfort and convenience, e.g. with the outstanding 3D Modul supporting examination of crossing ink lines.

Efficient Workflow

Integrated in the Spectra Pro+ is a newly developed, motorised X/Y positioning stage, which has a larger range of movement. This simplifies e.g. the analysis of ROI (Region of Interest) considerably. Thanks to the automated control, users spend less time manually repositioning documents and thus have more time for analysis.

Extended Functionality

Impressive array of options and modules to reinforce Spectra Pro+ all-in-one credentials, including OVI mirror, magnetic ink detector, "Sealys edge sealer" module, 360° rotary and tilting table, PAGSCAN document reader as well as various software modules such as the NEW Projectina Face Verifier.

Examination of Security Features like:

UV activated security features
OVDs, holograms and kinegrams
IR illumination "anti-Stokes"
Retro-reflective security features
OVI Optical variable inks
Phosphorescent inks
Watermarks
Laser images and engravings
Latent images
Birefringent features like e.g. SICPA OASIS®
Stamps and embossings
Fibers and other paper security features and many more

Technical Specifications:

Weight: approx. 105 kg
Dimensions: approx. 959 mm width x 607 mm depth x 588 mm height
Magnification: up to 500x on 32"4K monitor with Spectra Pro+
Up to 224x on 32"4k monitor with Spectra Pro
Switchable Power Supply: 115 V 60 Hz +/- 10% or 230 V 50 Hz +/-10% (max. consumption: 400 W)
Camera: 24.5 MP (Spectra Pro+) or 10MP (Spectra Pro)
Visible / IR lighting: Incident / Flood, Top Side, Side left / right, LED ring light array, Retro/coaxial illumination, anti-Stokes 740-1000 nm
UV illumination: UV-A 365 nm, UV-B 313 nm, UV-C 254 nm
Transmitted light: visible / IR, Spot, UV-A 365 nm
